Determining Wire Size for 50A Loads under IEC Standards
To build a safe electrical system, selecting the correct wire size is an important part. For a standard 50 amp circuit under international standards, the baseline requirement is typically 10mm² or 16mm² copper conductors. This selection ensures that the 50 amp wire size maintains proper ampacity and supports circuit protection reliability when paired with industrial-grade overcurrent protection devices (MCB, RCCB, RCBO). By combining correctly sized conductors with high-quality TALEMOD circuit breaker series, your power distribution system maintains an unbreakable defense line even under full-load startup or fault impacts.
Under IEC 60364-5-52 standards, a 50 amp circuit typically requires a copper conductor with a cross-sectional area of 10mm² or 16mm², depending on the specific installation method and environmental conditions. This metric approach focuses on current-carrying capacity and thermal dissipation, differing fundamentally from the AWG sizing used in North American jurisdictions.
You may notice that while 10mm² is often the calculated baseline for 50A, engineers frequently specify 16mm² when cables are routed through thermal insulation or grouped with other circuits. This observation highlights the sensitivity of metric cable sizes to their physical surroundings and the strict derating factors required by international standards.
Selecting the correct 50 amp wire size mm2 involves navigating the IEC 60364 cable sizing framework, which categorizes installation types into "Reference Methods" (such as Method A for cables in insulated walls or Method C for clipped direct). Unlike the NEC, which relies on fixed tables for AWG, the IEC system requires designers to account for the specific thermal resistance of the installation environment to prevent insulation degradation. Using standardized metric cable sizes ensures global compatibility and adherence to safety protocols for 230V and 400V systems, where voltage drop and short-circuit protection are critical parameters for high-current loads.
Under normal conditions with copper conductors, 10mm² is rated for approximately 52–63 amps when clipped direct, but this capacity drops significantly if the cable is enclosed. Consequently, 16mm² becomes the safer, more common choice for 50A applications to provide a necessary buffer against heat buildup and to maintain long-term system integrity.
In practical installations, correct cable sizing must be coordinated with the protective device rating to ensure thermal protection of the conductor.High-quality protection devices such as TALEMOD Miniature Circuit Breakers (TDM7 series) help ensure that the breaker trips within the correct time-current curve, preventing conductor overheating during overload or fault conditions.When constructing 50A circuits, beyond strictly following codes to select 10mm² or 16mm² conductors, incorporating high-performance TALEMOD Miniature Circuit Breakers(TDM7) for refined branch circuit protection and utilizing TALEMOD Residual Current Circuit Breakers(TDL4) to enhance personal and equipment safety are key to ensuring long-term, trouble-free system operation. TALEMOD's circuit breaker series is specifically engineered to withstand industrial-grade surges and harsh environments, ensuring your circuits are not just "sized correctly," but "protected reliably."
Baseline Recommendations: 10mm² vs. 16mm²

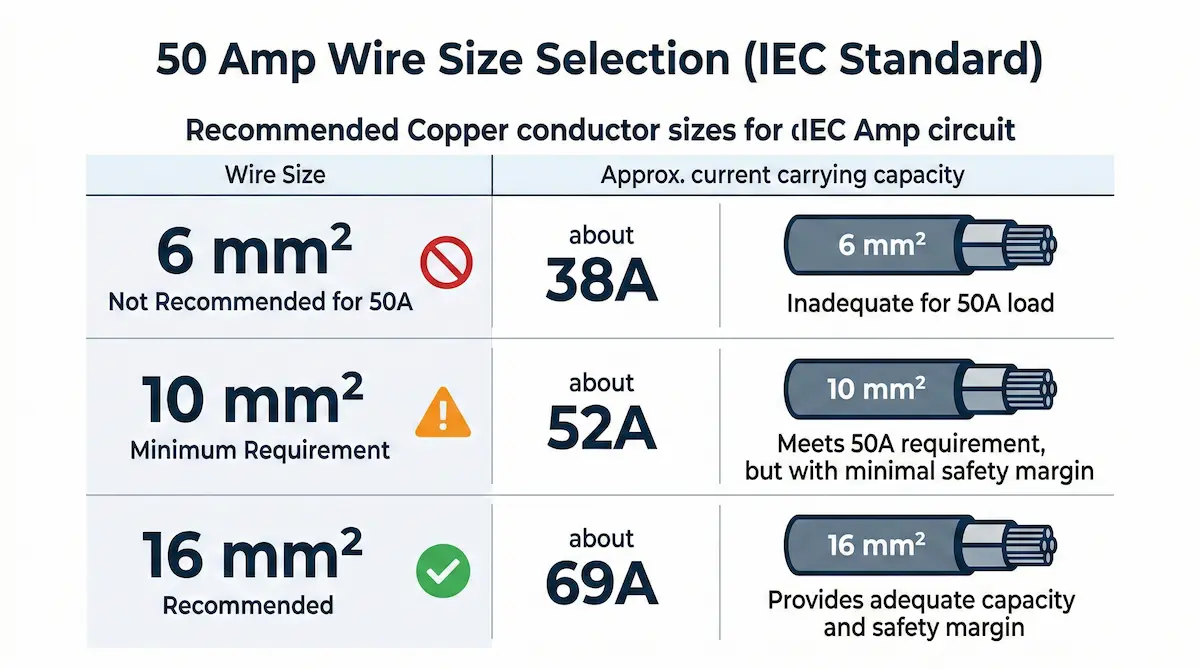

Selecting what size wire for 50 amp circuits depends on installation constraints, though 10mm² copper conductors are generally the minimum for standard configurations under IEC 60364-5-52. While 10mm² provides sufficient 10mm2 current carrying capacity for many 50A loads, engineers often opt for a 16mm2 cable rating to ensure safety margins and meet specific current carrying capacity requirements.
Thermal and Installation Limits
In copper conductor sizing, the choice between cable cross-sections is primarily dictated by the installation method and the resulting thermal dissipation.
- 6mm² Conductors: For a 50A load, 6mm² cable is generally insufficient. Under standard IEC Reference Method B (cables in conduit or trunking on a wall), a 6mm² PVC-insulated copper cable is typically rated for approximately 38A. Even with higher-temperature XLPE insulation, it rarely reaches the 50A threshold in restricted airflow environments.
- 10mm² Conductors: This is the standard baseline for 50A applications. In Method B, 10mm² PVC cable provides a capacity of approximately 52A, which offers a small but technically compliant margin. You may notice this is the most frequent selection for short-run commercial equipment.
- 16mm² Conductors: This is considered the conservative choice for industrial or high-duty cycle applications. It provides a significant buffer, often rated near 69A in conduit, which accounts for potential ambient temperature increases or bundled cable de-rating factors.
|
Conductor Size (mm²) |
Reference Method B (In Conduit) |
Reference Method C (Clipped Direct) |
50A Compliance Status |
|
6mm² |
~38A |
~47A |
Not Recommended |
|
10mm² |
~52A |
~64A |
Standard Minimum |
|
16mm² |
~69A |
~85A |
Preferred/Conservative |
*Note: The values in the table represent typical current-carrying capacities for PVC insulated copper conductors in Reference Method B (enclosed in conduit on a wall or in trunking), based on an ambient temperature of 30°C. Actual values may vary slightly according to national annexes of IEC standards; please refer to local regulations for exact requirements.
A common mistake is assuming that 6mm² cable can be pushed to 50A based on "open air" ratings. In practice, most commercial wiring is enclosed in conduit or trunking, where the lack of airflow significantly reduces the cable's ability to shed heat, making the larger cross-sections necessary for long-term reliability.
Impact of Installation Methods (IEC 60364-5-52)
Selecting the correct cable cross-section for a 50A load requires strict adherence to IEC 60364-5-52 installation methods, as the environment surrounding the conductor determines its ability to dissipate heat. While a cable may be rated for high currents in open air, placing it within thermal insulation or crowded conduits necessitates significant derating to prevent dangerous overheating.
A common mistake occurs when a cable is selected based on its maximum nominal rating without considering the specific path it takes through a building. Installers often find that a cable sized for open-air runs becomes a fire hazard once it is pulled through a conduit embedded in high-performance thermal insulation.
The IEC 60364-5-52 standard categorizes these environments to ensure safe operation:
- Method A (Cables in conduit in a thermally insulated wall): This is the most restrictive installation method. Because the surrounding insulation prevents heat from escaping, the current-carrying capacity is significantly reduced. For a 50A continuous load, a 10mm² cable may be insufficient, often requiring an upgrade to 16mm² to compensate for the lack of thermal dissipation.
- Method C (Clipped direct): When a cable is fixed directly to a wall or surface, it benefits from better heat transfer to the ambient air and the mounting surface. Under Method C, a 10mm² copper conductor is generally capable of handling a 50A load safely, provided the ambient temperature remains within standard limits.
- Cable Derating Factors: If the installation involves grouping multiple circuits in the same tray or conduit, derating factors must be applied. The proximity of other energized cables increases the local ambient temperature, meaning each cable can carry less current than it would individually.
- Conduit Fill Capacity: Proper conduit fill is essential not just for the ease of the pull, but for thermal management. Overcrowded conduits restrict airflow and lead to heat saturation, which can degrade cable insulation over time even if the individual load is exactly 50A.
Checking the installation environment against the official IEC tables is the only way to ensure the selected mm² cross-section will perform reliably under full load.
PVC vs. XLPE Insulation: Temperature Ratings
The choice between PVC and XLPE insulation determines the maximum operating temperature of the conductor, which directly impacts current-carrying capacity for a 50A circuit. While PVC is limited to 70°C, XLPE supports up to 90°C, often allowing for a reduced cross-sectional area while maintaining thermal safety under heavy loads.
Standard PVC (Polyvinyl Chloride) insulation is the most common material for general-purpose wiring but has a strict insulation temperature limit of 70°C. When a 50A load is applied, the heat generated by the resistance in the copper must be dissipated effectively. If the ambient temperature is high or the cable is installed in thermally insulated walls, a PVC-insulated cable may require a larger cross-section, such as 10mm² or 16mm², to prevent the material from degrading.
In contrast, XLPE (Cross-linked Polyethylene) provides a 90 degree wire rating. This higher thermal threshold means the conductor can safely run hotter without compromising the integrity of the insulation. When comparing PVC vs XLPE cable for industrial applications, this 20°C difference is significant. According to IEC 60364-5-52, an XLPE-insulated 6mm² or 10mm² cable can often carry the same 50A current that would necessitate a larger PVC cable in the same installation conditions.
You may notice that while XLPE offers superior performance, it is often stiffer and less flexible than PVC, which can affect ease of installation in tight enclosures. Engineers typically specify XLPE for high-density cable trays or underground ducts where heat dissipation is restricted, ensuring the circuit remains within safe operating parameters even at peak demand.
Voltage Drop Considerations for 230V/400V Systems
Determining what size wire for 50 amp loads requires evaluating both thermal limits and voltage drop, particularly for cable runs exceeding 25 meters. IEC 60364-5-52 recommends limiting voltage drop to 3% for lighting and 5% for power circuits to ensure equipment operates correctly and to prevent excessive energy loss at the load end.
In many installations, you may observe that while a specific cable size meets the thermal requirements for a 50A load, the voltage at the terminal drops below acceptable levels as the distance increases. This relationship between cable length vs size is critical; as length increases, the resistance of the conductor causes a measurable decrease in voltage. According to IEC voltage drop limits, for a standard 230V single-phase supply, a 5% drop allows for a maximum loss of 11.5V.
The voltage drop calculation formula commonly used in IEC systems is Vd=(mV/A/m)×I×L/1000. In this formula:
- mV/A/m is the millivolt drop per ampere per meter (found in manufacturer data or IEC tables).
- I is the design current (50A).
- L is the route length in meters.

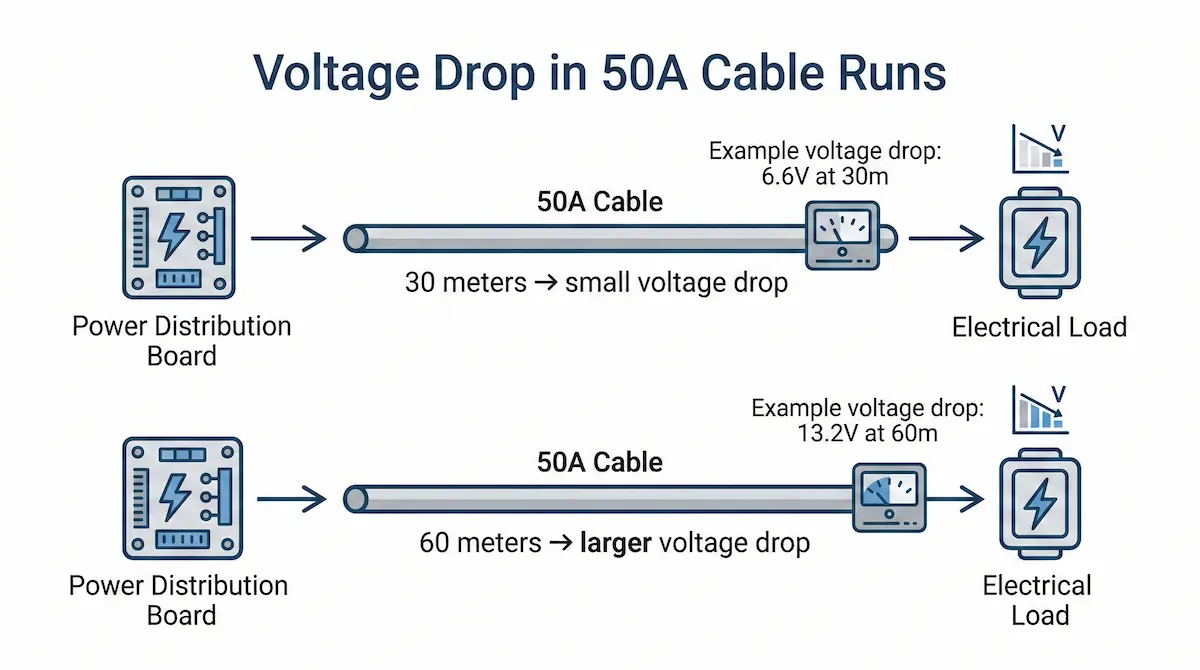

For a 50A circuit using 10mm² copper conductors, the voltage drop is approximately 4.4 mV/A/m. On a 30-meter run, the drop would be roughly 6.6V, which is well within the 5% limit (11.5V). However, if the run extends to 60 meters, the drop increases to 13.2V, exceeding the limit and necessitating an upgrade to 16mm² or 25mm² conductors purely for voltage stability.
Professional system observations often show that 16mm² becomes the default choice for 50A sub-main circuits or EV chargers when the cable route exceeds 35 meters. Upsizing to 25mm² is typically reserved for very long runs (exceeding 50-60 meters) or where the supply voltage is already at the lower end of the permissible tolerance. This proactive approach ensures that heavy-draw appliances, such as electric hobs or industrial motors, do not suffer from performance degradation or premature component failure due to undervoltage.
Check your specific installation environment against local variations of IEC standards, as some regions may impose stricter limits for specific types of buildings or equipment classes. Selecting the larger cross-section not only ensures compliance but also reduces the heat generated within the cable, slightly improving overall system efficiency.
Coordinating with Circuit Protection (MCB/MCCB)

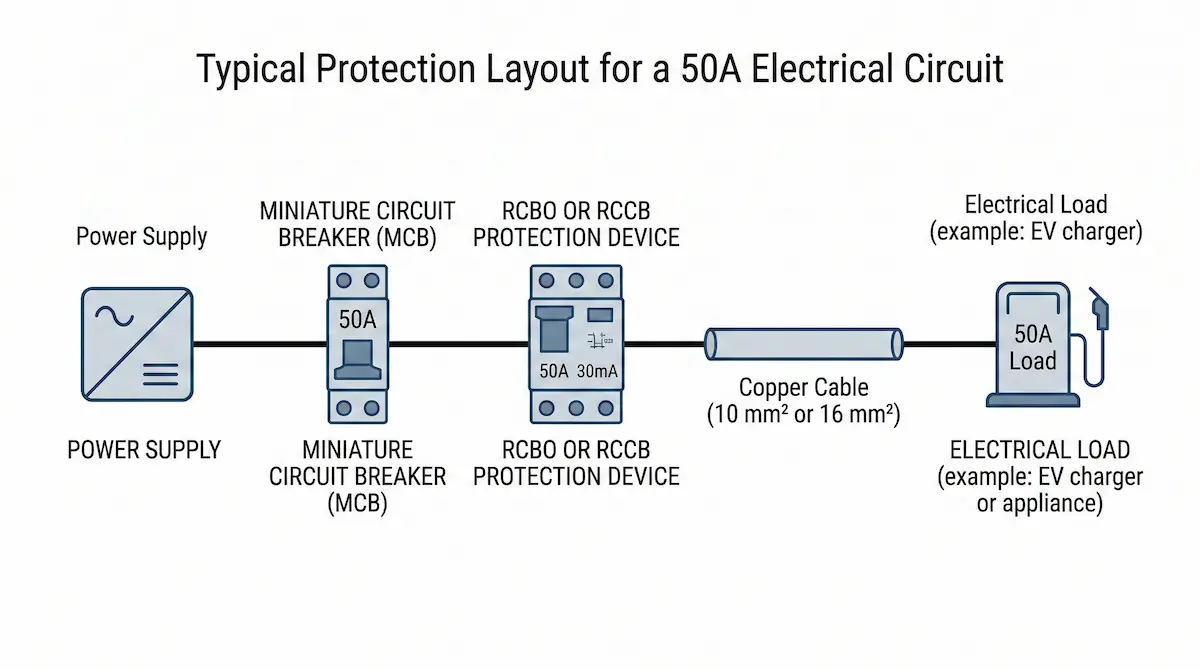

Effective circuit protection requires strict coordination between the design current, the protective device rating, and the cable's current-carrying capacity to prevent thermal damage. According to IEC 60364-5-52, the fundamental relationship is expressed as Ib≤In≤Iz, ensuring the breaker protects the conductor under all foreseeable load conditions.
When designing for a 50A load, the MCB rating selection typically falls on a standard 50A or 63A device. If a 50A MCB is chosen (), the selected copper cable must have an installation-specific capacity () of at least 50A after applying all derating factors for grouping, ambient temperature, and thermal insulation. If the design current () is close to 50A, engineers often move to a 63A breaker to avoid nuisance tripping, which then necessitates a cable with a much higher to maintain circuit breaker coordination.

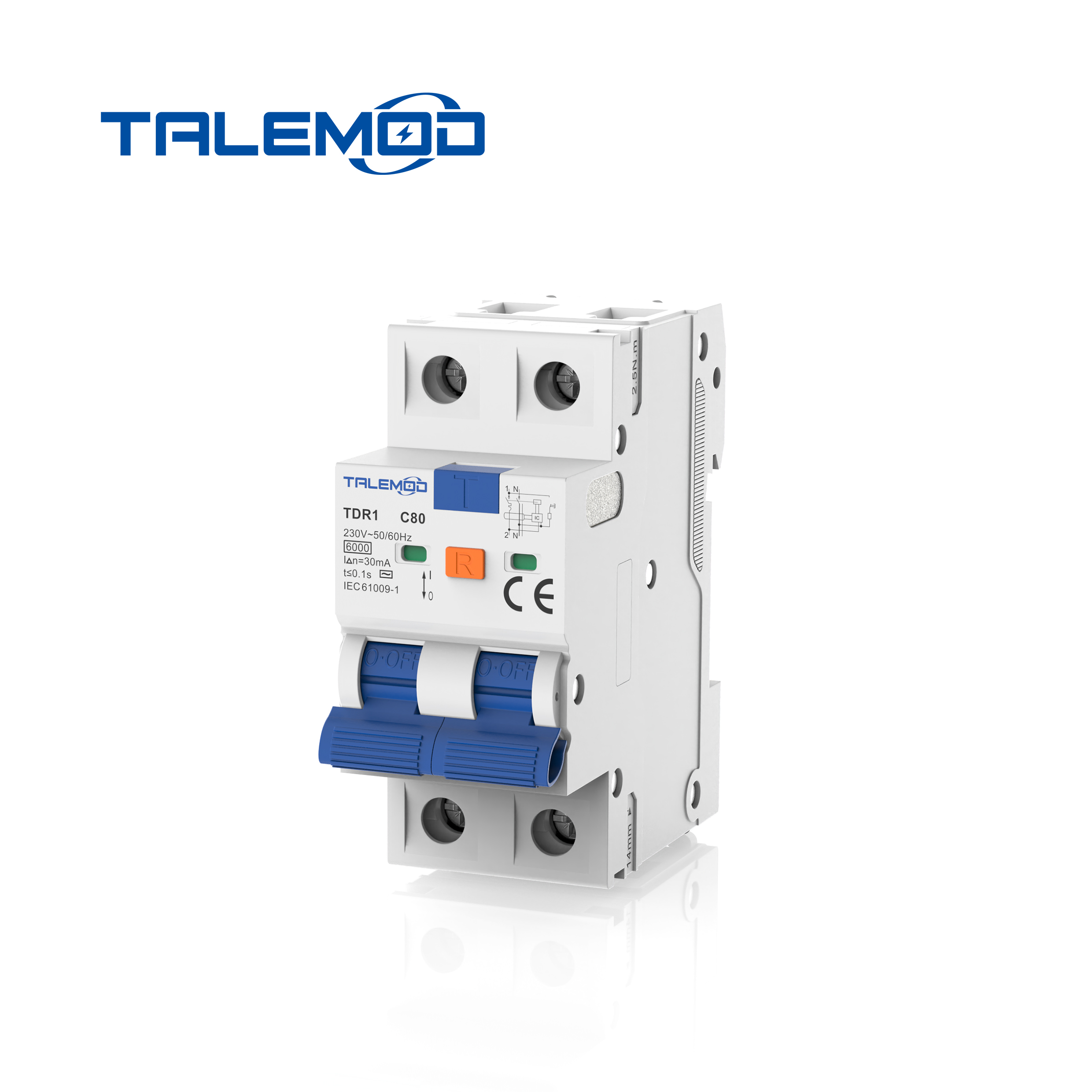

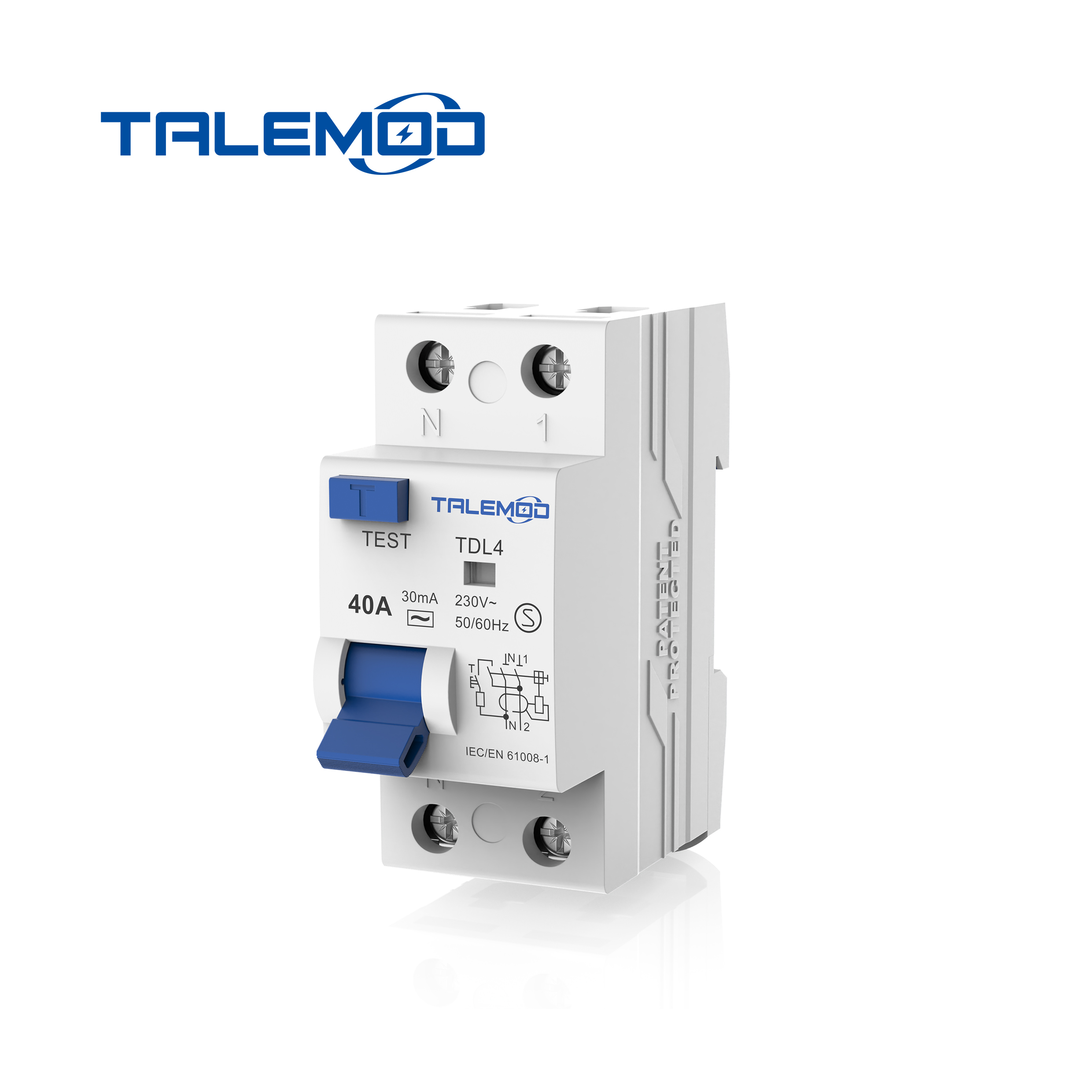

In many modern installations, engineers also choose to integrate RCBO devices instead of using separate MCB and RCCB units. A Residual Current Breaker with Overcurrent protection (RCBO) combines both overload protection and residual current protection in a single device, simplifying panel design and saving valuable distribution board space.
For applications such as EV chargers, kitchen equipment, or small industrial machines operating on 40A–50A circuits, RCBO devices provide an efficient and safer protection solution. High-performance options like the TALEMOD RCBO series are designed to ensure reliable fault detection and fast disconnection in both overload and earth-leakage conditions, improving system safety while maintaining compact installation requirements.
Beyond the nominal rating, overcurrent protection must satisfy the "1.45 rule." This requirement ensures that the conventional tripping current of the breaker ()—the current at which it is guaranteed to trip within a defined time—does not exceed 1.45 times the cable's continuous current capacity (). For most standard Type B, C, or D MCBs, meeting the ≤ requirement inherently satisfies this safety margin, provided the cable is sized correctly for its specific environment.

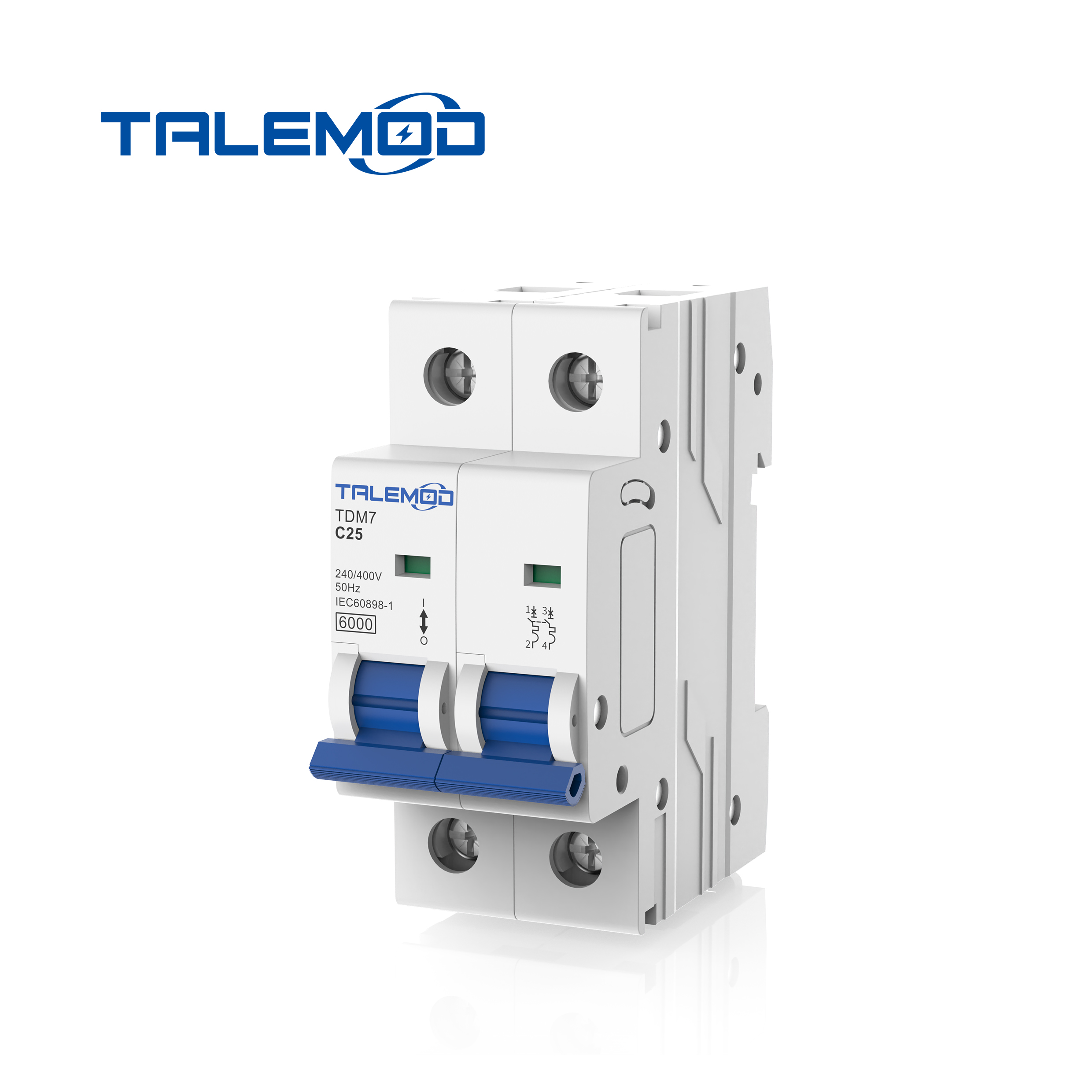

For example, when pairing a 50A circuit with a Type C MCB, engineers typically choose devices rated at 50A or 63A depending on the load profile. Industrial-grade breakers such as the TALEMOD TDM7 series provide stable tripping characteristics and reliable overload protection in demanding electrical environments.
Procurement Specifications for Export Markets
Procurement for 50A circuits in IEC-regulated regions involves selecting 10mm² or 16mm² copper conductors that align with specific installation environments and local regulatory frameworks. Accurate cable procurement specs must define the conductor class, insulation type, and required safety certifications like CE or CB to ensure the system handles the continuous thermal load safely.
When defining IEC 60228 conductors, engineers must distinguish between Class 2 and Class 5 flexibility. Class 2 conductors are stranded and intended for fixed installations in conduits or cable trays, providing a balance between rigidity and ease of pull. In contrast, Class 5 conductors are fine-stranded and highly flexible, typically used for internal switchgear wiring or connections where vibration is a factor. For a 50A circuit, using Class 5 cable requires specific termination ferrules to ensure the fine strands do not splay, which could lead to high-resistance points and overheating. It is important to note that Class 5 flexible conductors have a slightly higher DC resistance than Class 2 stranded conductors of the same cross-sectional area. Therefore, special attention should be paid to voltage drop calculations for long-distance applications when using flexible cables.
Standard NYY cable specifications are frequently used for fixed power distribution in both indoor and outdoor settings across Europe and Southeast Asia. NYY indicates a PVC-insulated, PVC-sheathed cable suitable for direct burial or cable ducts. For single-core flexible wiring within control panels, H07V-K is the harmonized code often specified. Procurement teams must verify that all selected cables carry the CE mark for European Union compliance or a CB Test Certificate for international markets. These certifications provide evidence that the cable has undergone rigorous testing for insulation integrity and flame retardancy according to IEC standards.
Project managers often find that local availability in export markets may favor one conductor class over another, necessitating a review of the terminal compatibility on the 50A protective devices. Ensuring that the procurement documents explicitly state the required mm² cross-section and the IEC 60228 class prevents the common mistake of sourcing flexible cable for terminals designed only for rigid stranded wire.
Need circuit protection solutions for your projects?
TALEMOD provides IEC-certified miniature circuit breakers, RCCBs, and RCBOs designed for industrial and commercial electrical systems worldwide.
Contact our engineering team to find the right protection solution for your application.
Q: Is 10mm² wire enough for 50 amps?
A: Yes, 10mm² copper cable is generally sufficient for a 50A load under standard IEC 60364-5-52 installation conditions like clipped direct or perforated trays, though you must increase the cross-section to 16mm² if the cable is enclosed in thermal insulation or subjected to high ambient temperatures to prevent hazardous overheating.
You may notice that voltage drop becomes a limiting factor on longer runs even if the thermal capacity is technically sufficient. A common mistake is neglecting the impact of grouping factors when multiple circuits are bundled together in the same conduit, which significantly reduces the cable's effective current-carrying capacity.
Q: Can I use 6mm² cable for a 50 amp breaker?
A: While 6mm² copper cable is common for smaller circuits, it is usually insufficient for a 50 amp breaker under IEC 60364-5-52 standards. Depending on the installation method, 6mm² typically supports only 34A to 46A. To safely handle a 50A load and prevent overheating, a 10mm² cross-section is the standard requirement for most domestic and commercial environments.
A common mistake is assuming the maximum current rating applies in all conditions, ignoring factors like thermal insulation or conduit grouping. When determining what size wire for 50 amp applications is necessary, always account for derating factors that often push the requirement from 6mm² up to 10mm² to ensure the cable's current-carrying capacity exceeds the breaker's rating.
Q: How does ambient temperature affect wire sizing for 50A?
A: Ambient temperature significantly impacts wire sizing because higher temperatures reduce the cable's ability to dissipate heat, requiring a larger cross-sectional area to safely carry 50A. According to IEC 60364-5-52, rating factors must be applied when the surrounding air or ground temperature exceeds the standard reference of 30°C.
As the environment gets hotter, the current-carrying capacity of the conductor decreases to prevent the insulation from exceeding its maximum operating temperature (typically 70°C or 90°C). A common mistake is neglecting these correction factors in high-heat areas like lofts or industrial plant rooms, which can lead to insulation degradation even if the load does not exceed 50A. You may notice that in environments reaching 45°C, a 10mm² cable that is normally sufficient might need to be upgraded to 16mm² to maintain safety margins.
The following correction factors are based on the IEC standard reference ambient temperature of 30°C. For installations in environments with different ambient temperatures, multiply the base current-carrying capacity by the appropriate correction factor below.
|
Ambient Temperature (°C) |
Correction Factor (PVC Insulation) |
Effective Ampacity (10mm² Reference) |
|
30°C |
1.00 |
52A |
|
40°C |
0.87 |
45.2A |
|
45°C |
0.79 |
41.1A |
|
50°C |
0.71 |
36.9A |
Selecting the correct size ensures the circuit remains within thermal limits during peak summer temperatures or high-load conditions.
Q: What is the IEC equivalent to 6 AWG for 50 amps?
A: When determining what size wire for 50 amp circuits in metric regions, the closest IEC equivalent to 6 AWG is 16 mm². Since 6 AWG is roughly 13.3 mm², the 10 mm² standard is often too small for 50A loads, whereas 16 mm² provides the safety margin required for most installation methods and voltage drop limits.
Many installers mistakenly select 10 mm² because it is closer in absolute cross-sectional area, but this often fails to account for the thermal derating required by IEC 60364-5-52. Using 16 mm² ensures the circuit remains within safe operating temperatures under most common installation conditions.
